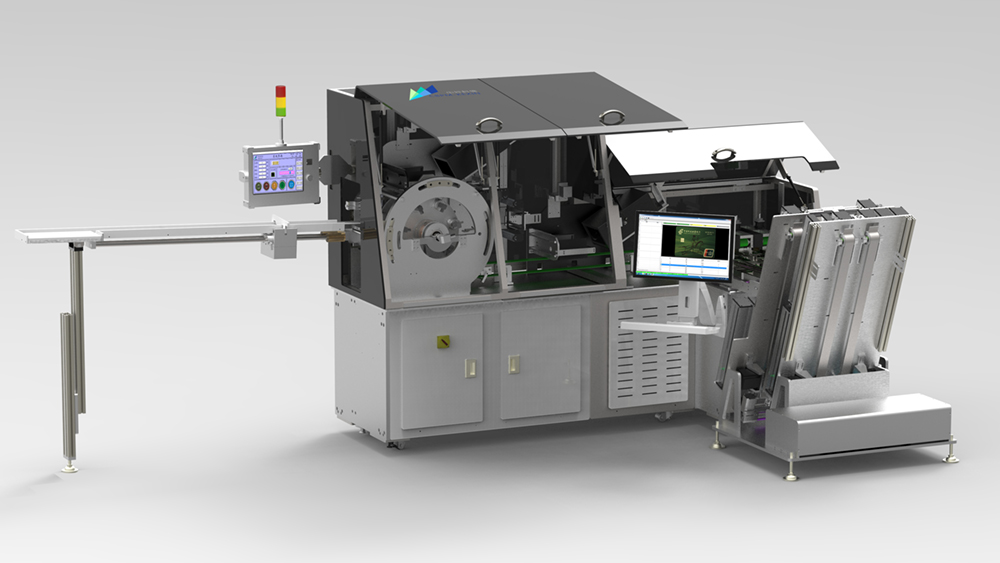

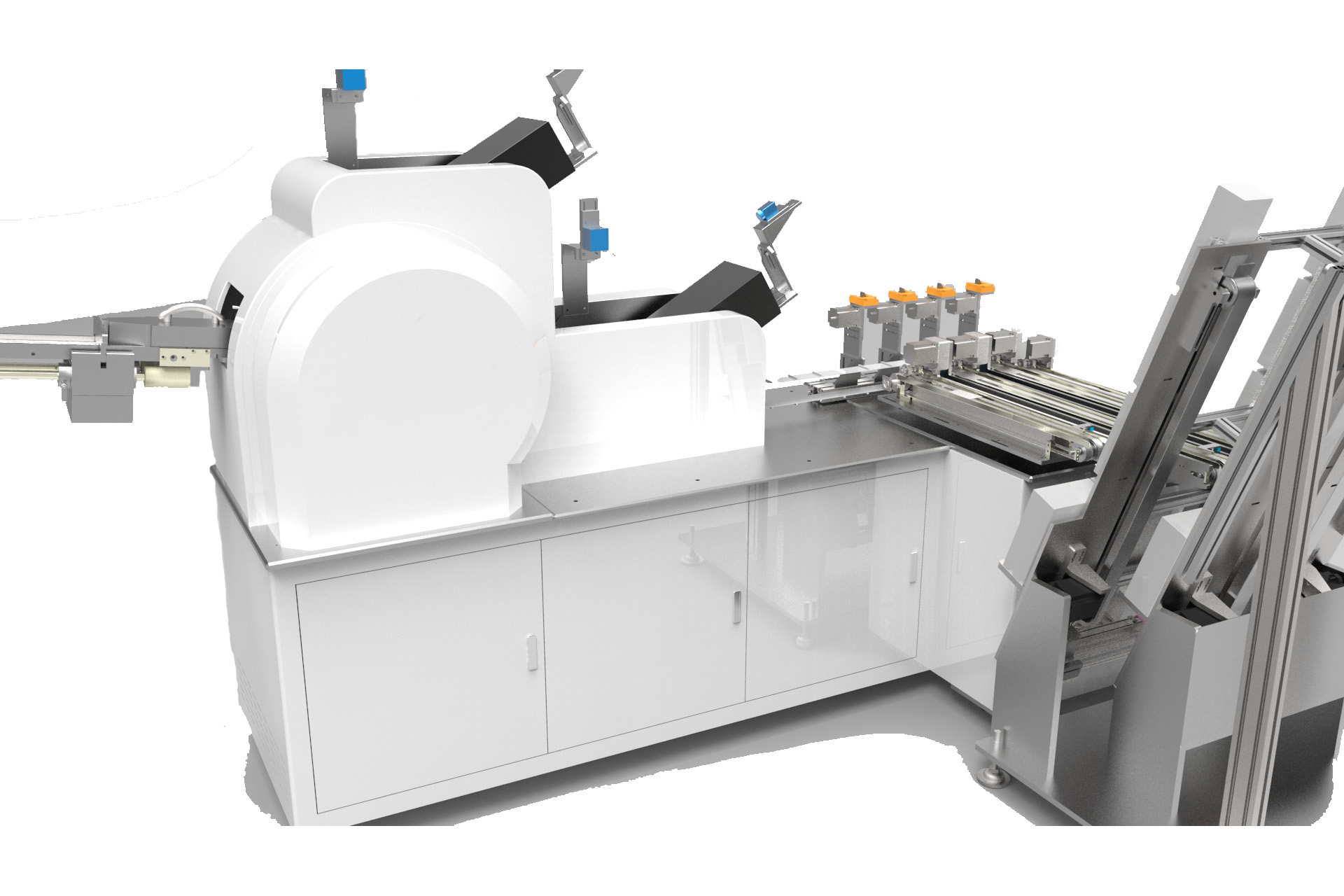

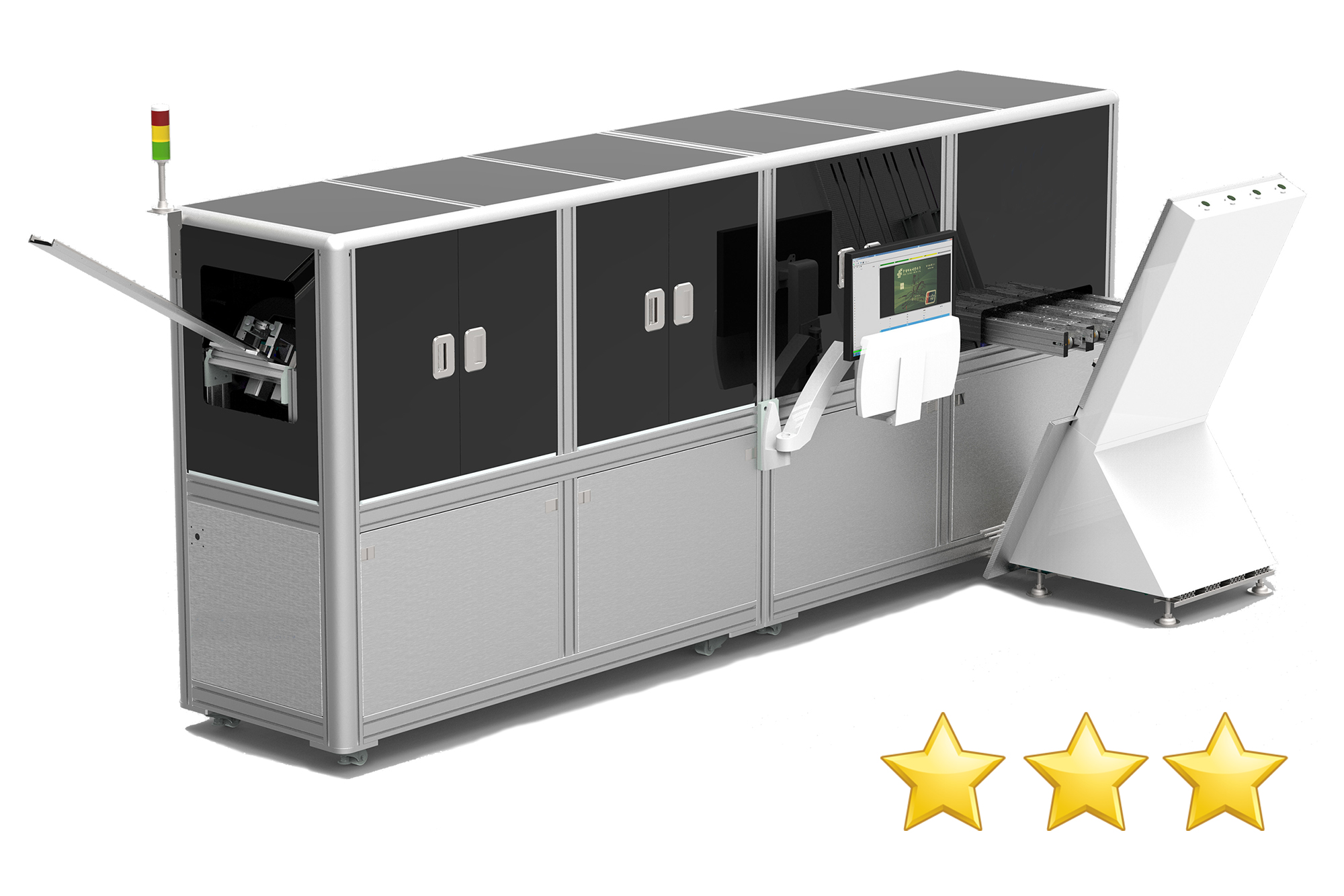

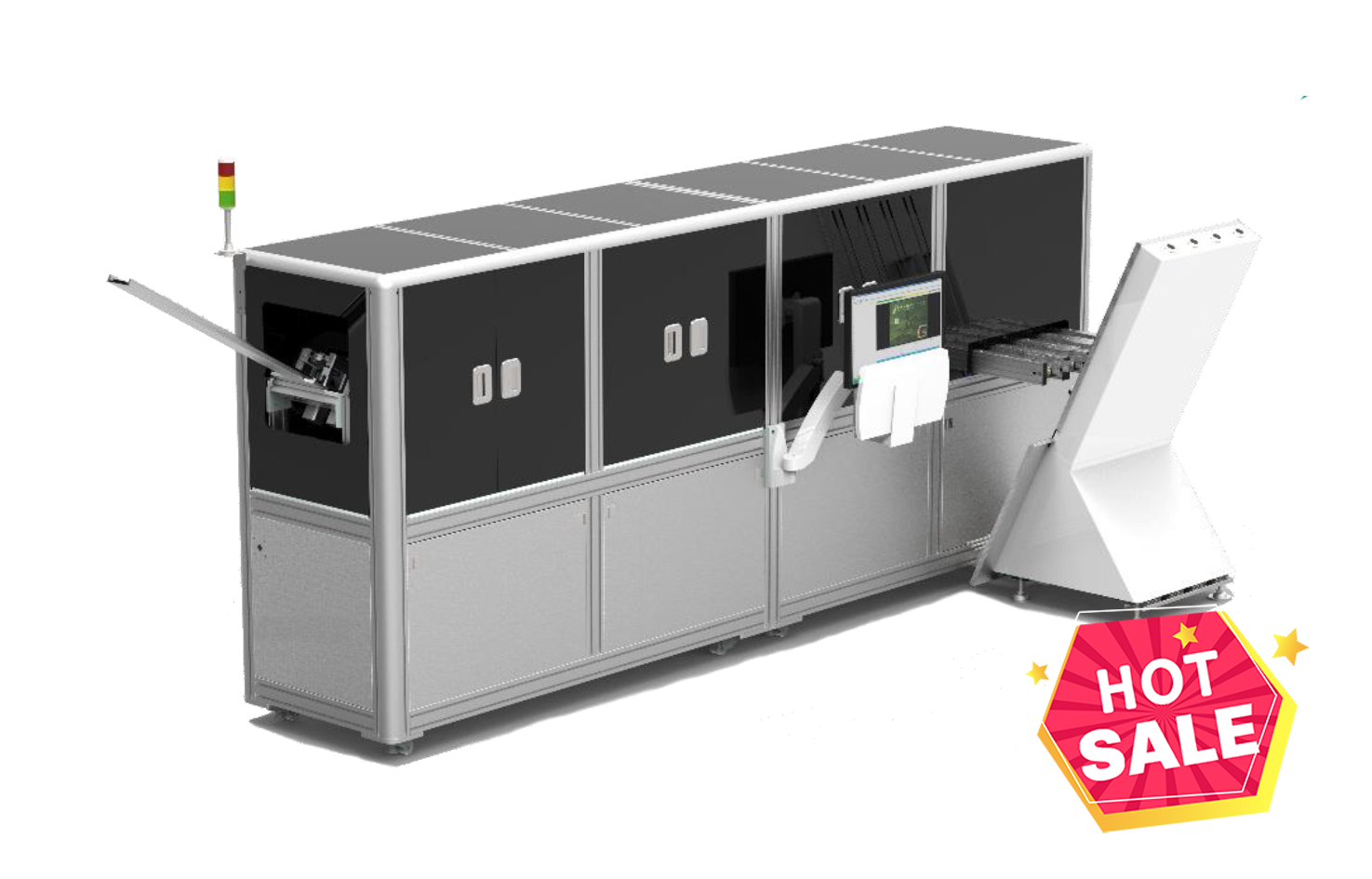

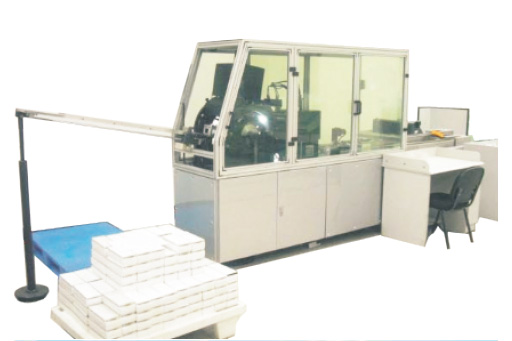

Card Surface Inspection System

OVERVIEW
As 4^th generation Auto Card Inspection System, KX-CardCore-V3 is designed to inspect card surface defects, such as dent, spot, bubble, scratch, artwork problem, printing error, holo & S.P incorrect, position/color deviation, etc.

It’s designed by CBPM-KEXIN which is founded by China Banknote Printing and Minting Corporation (CBPM) and China Academy of Sciences (CAS) and Shenzhen Cinda Investment Co., Ltd. They have a lot of innovate IP results in the image processing, precision machinery and optical, electronics and mechanic integration. Especially, the banknote sorting machine & card inspection machine has been widely used for more than 5 years.

APPLICATIONS
• No risk investment will bring you more competition power!

• The Mature Tech: 5 years usage in big banking cards manufacturing

• Smart Card, SIM/GSM Card, Financial Card, ID Card, Membership Card, Gift Card, ISO7810/7816 Card…

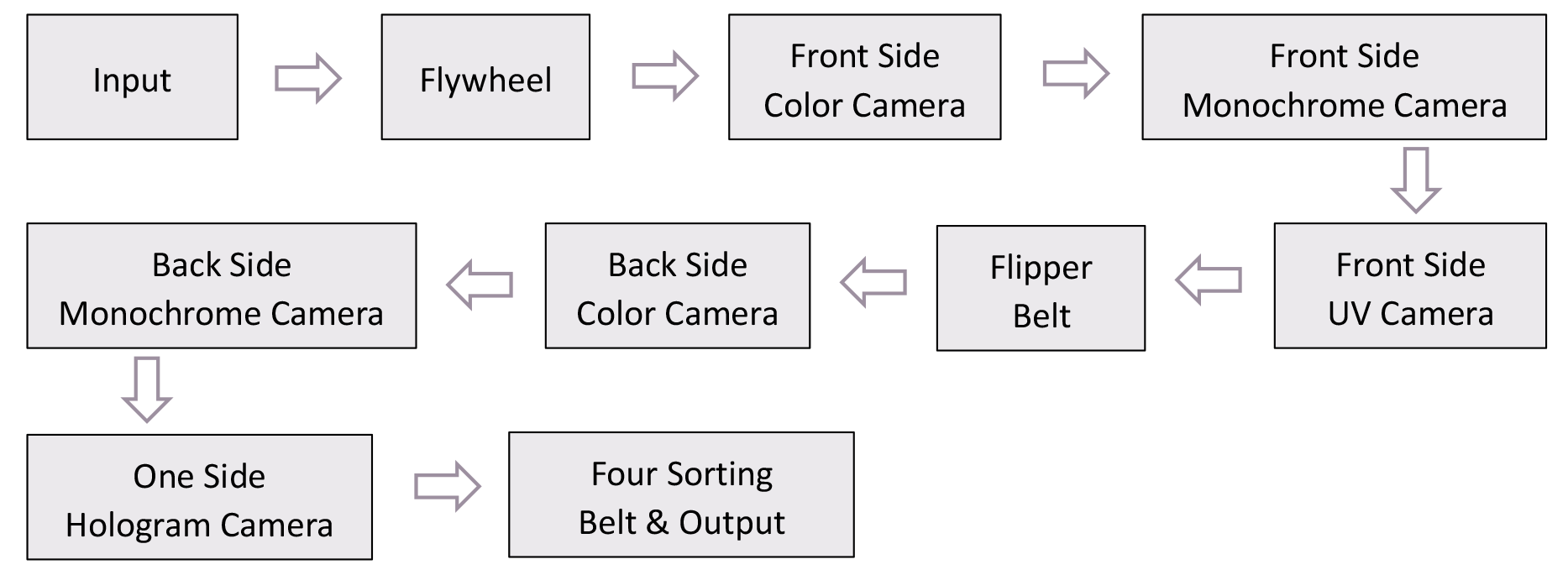

WORKFLOW

INSPECTION ITEMS

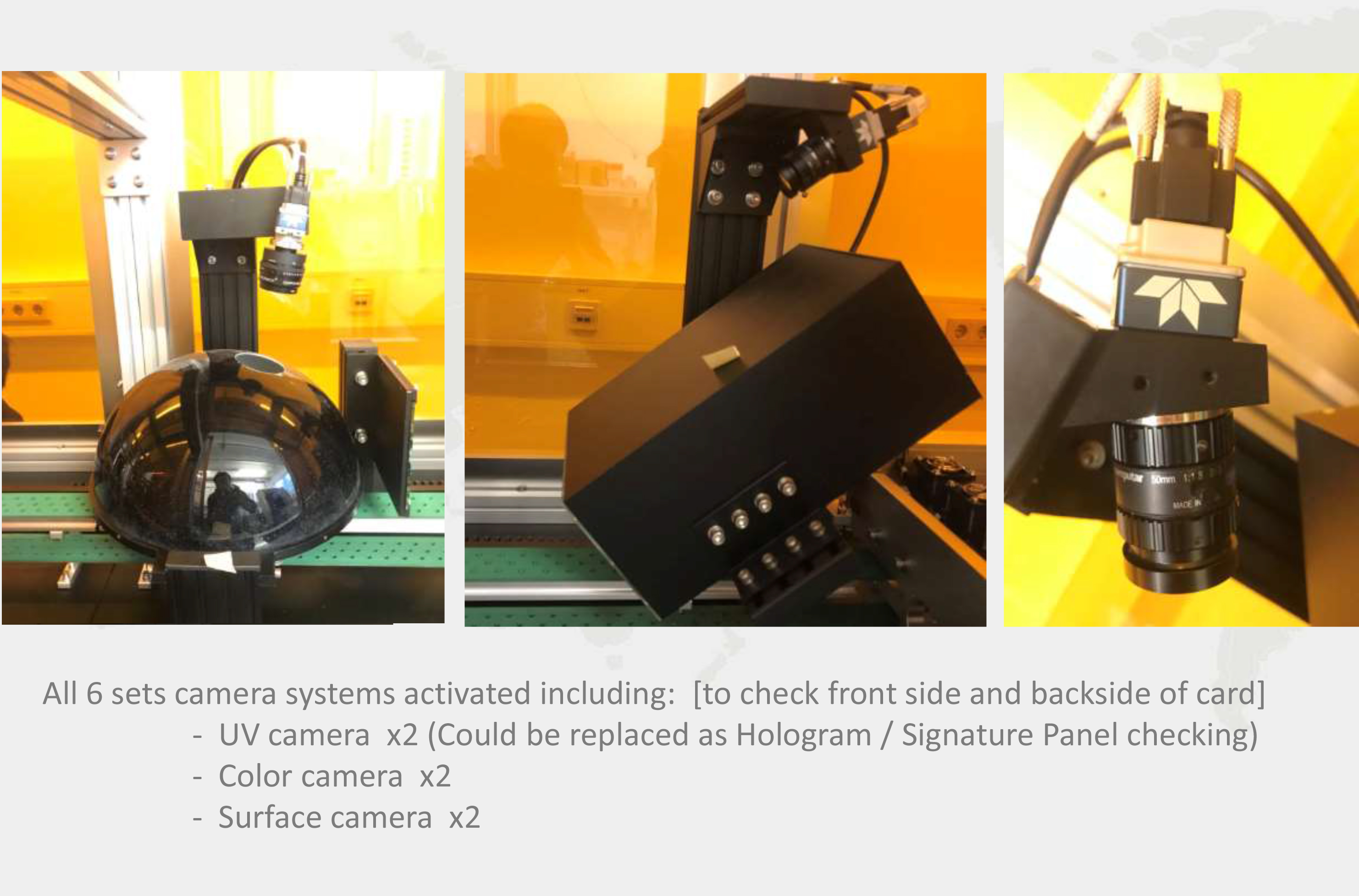

There are two cameras per inspection stations
•   Surface inspection
-    Monochrome cameras
-    Surface Quality: Scratches, Spot, Bubble, Bulge, Dent, Punching Error, Fiber…

•   Visual inspection
-    Color cameras
- Printing Quality: Matt, Cross Color, Color Registration, Registration Error, Printing Registration relative to spatial objects, Missing Printing/ Incomplete Text, Ink Spots, Contam, Color Dot, Picking Ink, Oil Stains, UV Spots, OVI, Secured Printing, Water Mark, Subtle Color or Brightness Shifts, Localized Flaw, Any Other Printing Error…
-    Card Visual Items: Chip Position, Shape & Position of Logo, S.P, Magnetic Stripe, Hologram, Partial Missing of Lamination Foil, Holes On Lamination Foil…

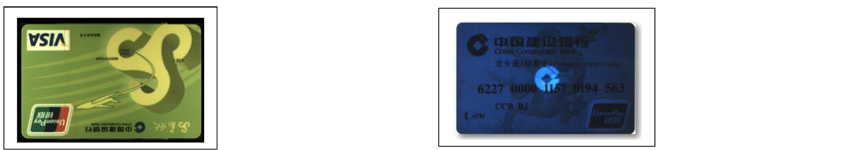

•   UV invisible inspection
-    UV camera
- UV invisible

•   Hologram's graphic and content inspection(optional)
-    Monochrome camera
- Hologram's graphic and content

• Pearly-lustre inspection, Micro-text inspection(optional)

ADVANTAGES
•   High Efficiency, Quality & Precision

Item	Manually	KXN00
Throughput	2,000UPH	25,000UPH
Efficiency Ratio	1	12.5
Benefits	e.g.13,000 USD per annum per capita.	8-10 labors down and recover cost in 1-2 years

•   High Added Value:
-    Increase output and improve company VI to attract new clients and win bids
-    Reduce reject ratio & complain and foster customer loyalty & advocacy

•   Innovative Technology:
-    None-scratch cards feeding design solutions
-    Template setting in 30 mins & 5 mins for repeat job
-    Multiple inspection windows to ignore or accent specific areas of card
-    Wide card composite and compatible for original production line
-    The Best Self-developed Parts in the market: IPC, strobe light source, software…

•   Perfect Service:
-    7*24 call on standby service
-    Free software & hardware upgrading, spare parts replacement like light source in 1 year Warranty
- Technical Support from China Banknote Printing and Minting Corporation (CBPM) and China Academy of Sciences (CAS)…

TECHNICAL SPEC

Max. Output	• 26,000CPH
Inspection Width	• 100mm×90mm (Can be designed as actual conditions)
Cards Feeding Capacity	• 1,000 Cards（1mm thickness）
Min. Inspection Tolerance	• Dia.: 0.04mm (0.1-0.2mm is popular in real production); △E: 3
Optical System	• 2 Million Pixel Greyscale/8 Million Pixel Color Dalsa Cameras
Cards Collection	• 4 collection magazines, each one can be defined by user.
Optional Parts	• Industrial Touch PC, MES Upload, Remote Pattern Setting, Remote Wireless Display
Optional Inspection Items	• UV/Micro text, Format, Content of Labels, 3D Image, Customized Items
Efficiency	• 100% Unqualified Cards Inspection & 95% Availability
Operator	• 1 person

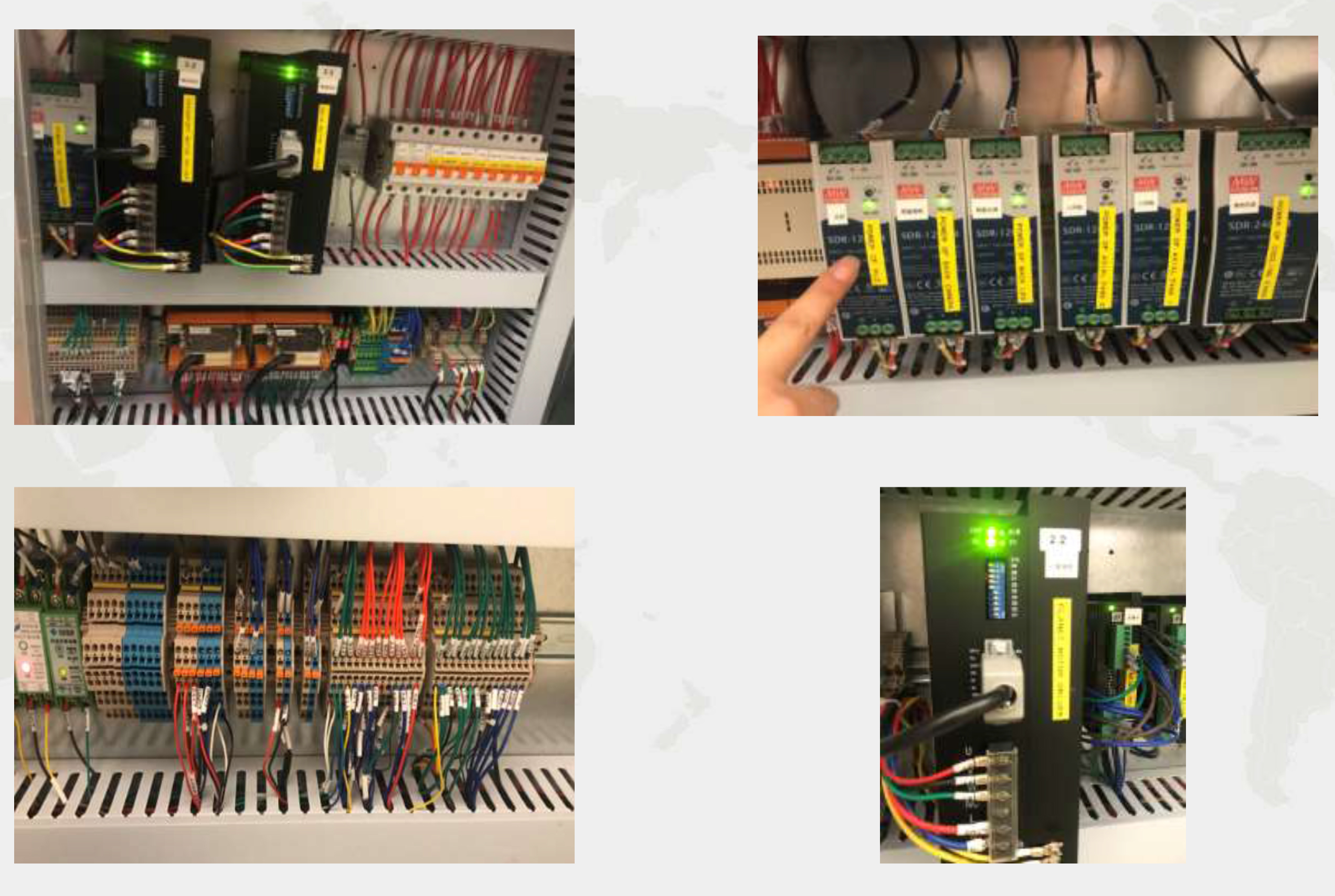

TECHNICAL SPEC

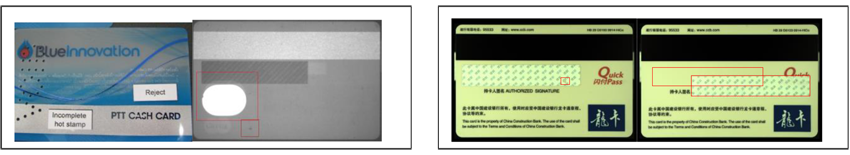

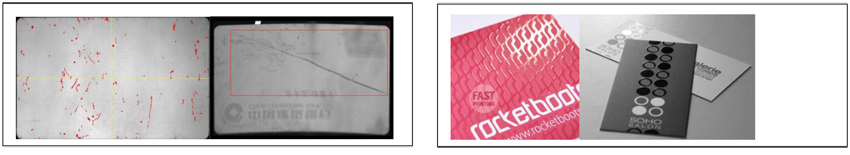

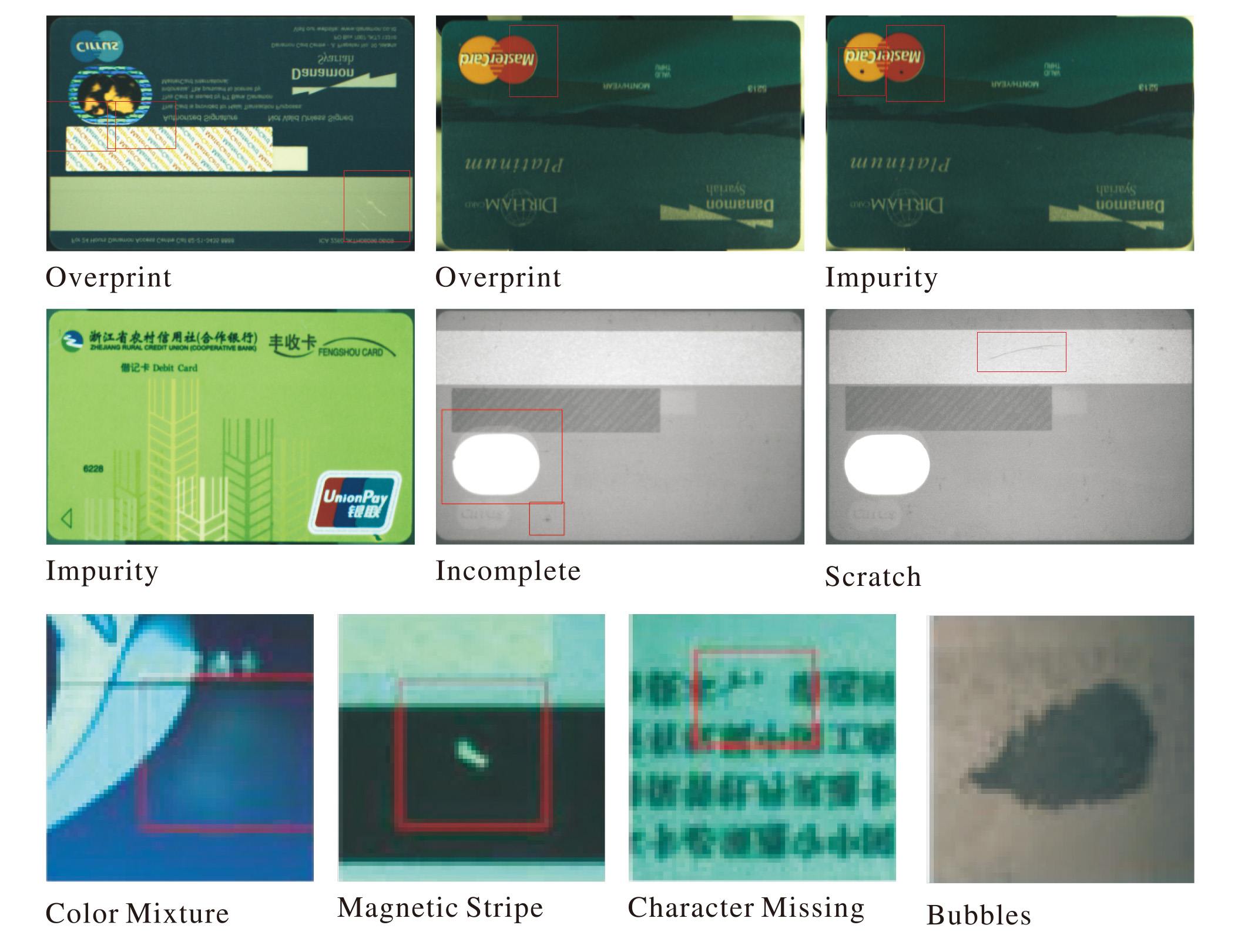

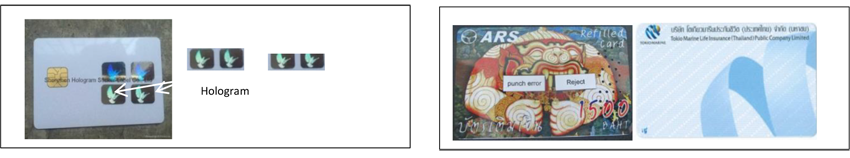

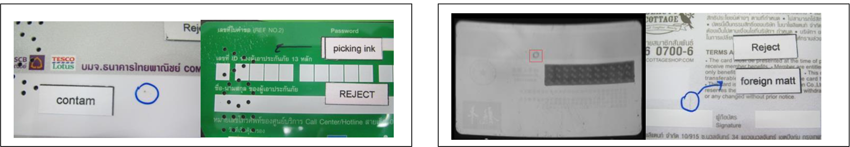

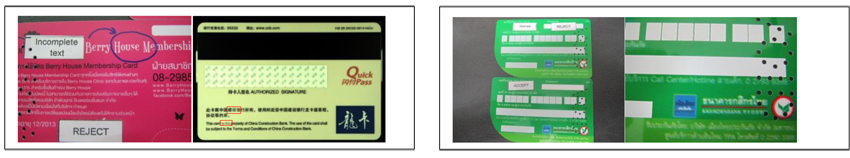

•   Ink Spots, Contam, Hicky, Color Dot, Picking Ink •   Bubble & Foreign Matt

•   Missing Letters/Incomplete Text •   Color Registration

•   Scratch    •   Spot UV

•   Hot Stamp   •   Signature Missing or Position Error

•   Hologram Position & Defects •   Image Position in the card (punching error)

•   SIM Card     •   ID Card

•   Color Deviation (background, logo, etc.)     •   Invisible Ink

RECOMMENDATION LETTER

Customers Are Our Employers, For Whom We Solve The Problem And Create More Values Abidingly. Your Demands Are Our Goals. This Product Meets All Demands As Fellow. Please Kindly Let Us Know, If You Have Further Requirements.

1. I am working as a senior engineer in production dept. With Syscom Corporation Ltd , Noida. Our company is a sim card and smart card manufacturing unit and we are SAFRAN MORPHO group. Dealing in sim card and smart card business worldwide.

Our production targets are getting high day by day and on this way we are facing some issues with quality checks e.g. we faced defects like dent mark, scratches on card body, artwork problem, sequencing issues, barcode printing problems, barcode grade not ok, dead card means chip got dead during the process etc.

After discussion with you and reading the details of machines which are adding with this mail too, I come to know that these machines can help us a lot in quality inspection with a high rate. Manpower issues will also solved automatically by using these machines because now a days we have to plan a huge manpower to inspect defected cards manually and it takes lots of time.

2. We’re the card manufacturer & security printing system and we need your machine to inspect items as below:
_ Ink spots
_ Air bubbles
_ Color deviation (background, logo, etc) à It can check all color if it have color deviation
_ Color registration (wrong image because of wrong registration)
_ Missing letters
_ Image position in the card (punching error)
_ Scratches on surfaces
_ Laminated scratches
_ Lamination dirty spots
_ Blebs and enclosures
_ Signature position
_ magnetic stripe position
_ hologram position and defects
_ Security marks & holograms
_ Hot stamp
_ Partial missing of lamination foil, holes in the lamination foil
_ Security invisible ink

3. In India market, only card sequence checking will be better option in quarter card format or machine which can detect sequence of ICCID and Barcode for 1 in 1 , 2 in 1 , and 4 in 1 card . We think it’ll work here if your machine can support that in one pass.

4. We are looking for a Card Inspection machine, below is the requirement for your quick reference:

Throughput - >20K cards/ hour
ID-1 cards only for inspection
Machine must do front and back visual inspection.
Inspection must be done by a good camera so that small scratches / dent can be also checked by camera, and can send to reject bin.
Input station à card cleaning station à Camera inspection-1 (front side of the card) à turning stationà camera inspection-2 (back side of the card)à Output (good cards + reject cards).
Camera Model Number is L103K and Company Make is Basler or the similar brand like US Dalsa.

5. We are mainly producing loyalty and gift cards – and a small part we do medium security identification cards like driving licenses, health cards and student IDs. 80% of all our orders are below 20.000 cards. Some are only 1.000 cards. Of course, it does not make sense to do machine control on this. But we would like a very fast setup for quantities above 5.000 cards, that checks on surface scratches, dots, ink drops, position of mag stripe and general position of the punching. More important is the setup-time – which should really be very fast as we have up to 10 jobs per day. I have been in Germany two days ago for this visual inspection machine, from the low to high speed. Very professional machine. But your machine attracts me a lot so I decide to check on site, and after that I will be in USA for another supplier.
(After visit in the factory)
I now may go to USA only for vacation. Thank you, Jay, you help me make a good decision!

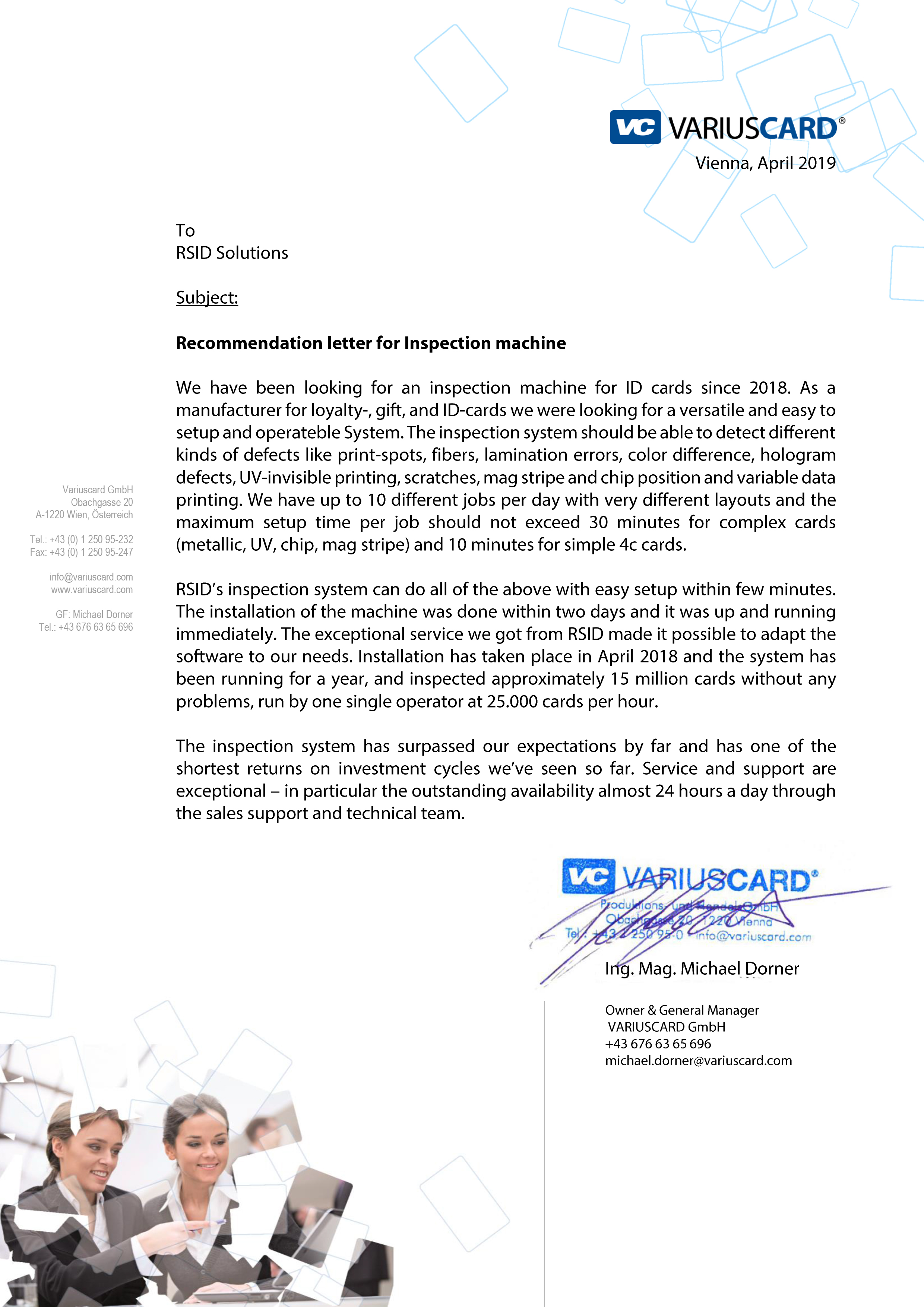

6. Comments from CEO of Variuscard,
-By Mr. Michael Dorner
“Before we came to China we’ve also visited some other Germany inspection machine suppliers. We need to think about the price, machine speed and actual performance, then we decided to buy this vision inspection machine from China”.

“With the actual speed of 25,200 cards per hour (UPH), this has largely increased the productivity for our inspection process and save a lot on our labor cost”.

“The speed is impressive, in a sense, there has to be one operator dedicated for card feeding, and another operator dedicated for collection all cards at the end part of machine.”

7. Most card inspection system can inspect SIM card or banking card. But we mostly produce ID card and security document. It’s better to inspect IR ink, UV ink, transparent window, Pit, pearly finish and defect under film.

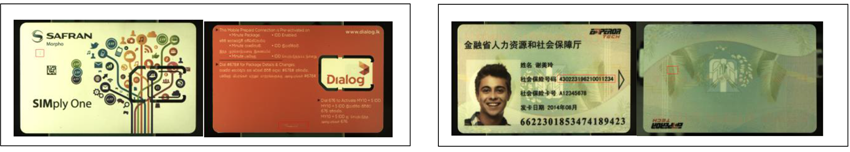

SAMPLE REFERENCE

RECOMMENDATION LETTER

ADVANTAGES
• High Efficiency, Quality & Precision

Item	Manually	KXN00
Throughput	2,000UPH	25,000UPH
Efficiency Ratio	1	12.5
Benefits	e.g.13,000 USD per annum per capita.	8-10 labors down and recover cost in 1-2 years

•   High Added Value:
-    Increase output and improve company VI to attract new clients and win bids
-    Reduce reject ratio & complain and foster customer loyalty & advocacy

•   Innovative Technology:
-    None-scratch cards feeding design solutions
-    Template setting in 30 mins & 5 mins for repeat job
-    Multiple inspection windows to ignore or accent specific areas of card
-    Wide card composite and compatible for original production line
-    The Best Self-developed Parts in the market: IPC, strobe light source, software…

•   Perfect Service:
-    7*24 call on standby service
-    Free software & hardware upgrading, spare parts replacement like light source in 1 year Warranty
- Technical Support from China Banknote Printing and Minting Corporation (CBPM) and China Academy of Sciences (CAS)…

Max. Output	• 26,000CPH
Inspection Width	• 100mm×90mm (Can be designed as actual conditions)
Cards Feeding Capacity	• 1,000 Cards（1mm thickness）
Min. Inspection Tolerance	• Dia.: 0.04mm (0.1-0.2mm is popular in real production); △E: 3
Optical System	• 2 Million Pixel Greyscale/8 Million Pixel Color Dalsa Cameras
Cards Collection	• 4 collection magazines, each one can be defined by user.
Optional Parts	• Industrial Touch PC, MES Upload, Remote Pattern Setting, Remote Wireless Display
Optional Inspection Items	• UV/Micro text, Format, Content of Labels, 3D Image, Customized Items
Efficiency	• 100% Unqualified Cards Inspection & 95% Availability
Operator	• 1 person

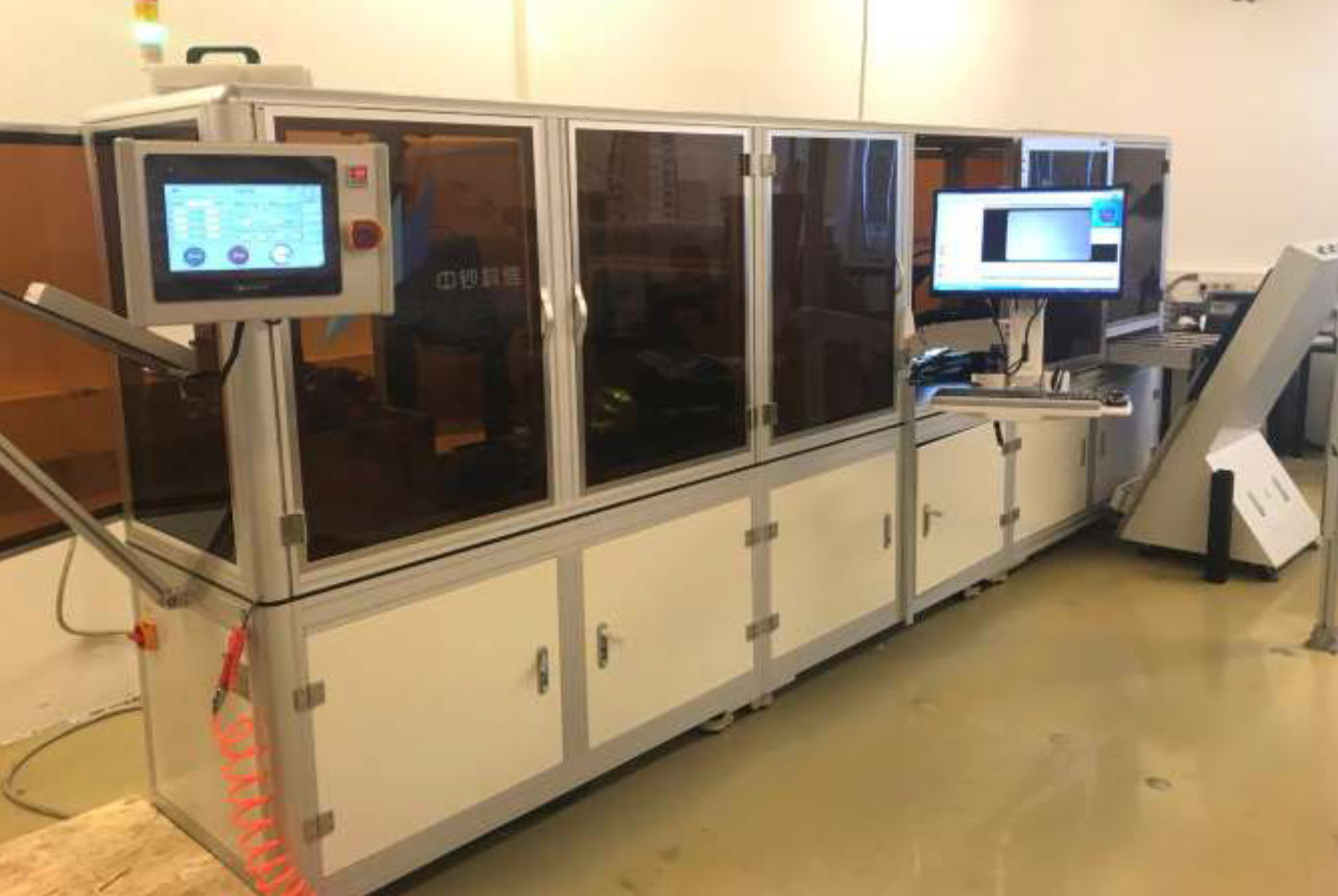

A Project For Variuscard

Card Inspection Equipment Shipped to Austria, Vienna

Time Lines

January-19, 2018, Mr. Michael Dorner, the CEO of Variuscard visited China Shenzhen and CBPM for card visual inspection machine.

January-24, 2018, Variuscard confirmed the PO to RSID Solutions for card visual inspection machine.

March-7, 2018, shortly after Chinese new year holidays, card visual inspection machine was shipped to Vienna, Austria.

April-2, 2018, two engineers were sent to Vienna Austria for card inspection machine installation and training in Variuscard factory.

April-2, 2018, machine was successfully set up in Variuscard and being able to meet their production needs. Site acceptance paper (SAT) was signed.

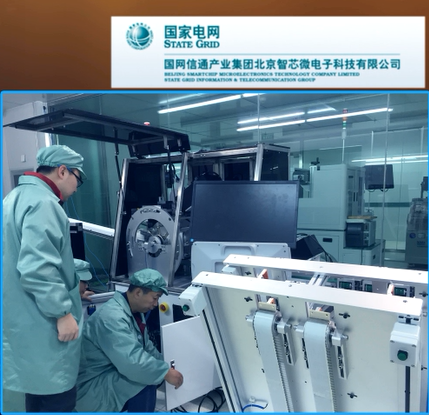

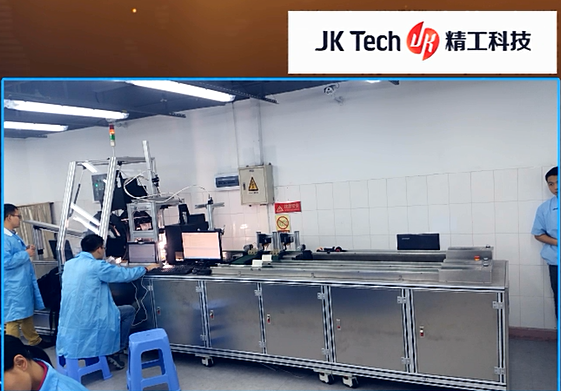

It has beed widely used in banking card manufacturer for more than 5 years. Here below are parts of users for your reference.

RECOMMENDATION LETTER

Services before Sales

Reply your inquiry within 24 hours.
Communication by email.
Welcome you visiting our factory and final users in China.
Help for VISA application and Invitation Letter issuing.
We afford you consultation for 24 hours of 7 days in the process of sale and after service by phone or mail. We will support you for advisory opinion in purchasing, explanation in various technical problems and reliable supply in technique support.

Services on Purchasing

Communication by email.
Welcome you visiting our factory and final users in China.
Help for VISA application and Invitation Letter issuing.

Services after Sales

Online Support, 24 hours feedback once got the email
Enough Spare Parts Preparation for you…
Engineer to customer’s site for training & repairment
Our equipments have 12 months for quality guarantee after sale. If the equipments do not work because of self cause, we will do free service and change the damaged spare parts.
We will do life-long maintenance for all of our sold equipments. After quality guarantee period, if you can not maintain the equipments by self, we are under an obligation to go to work place and assist you to make maintenance. The cost of spare parts as well as expenses of traveling and man-hour of worker will be negotiated separately. Spare parts will be supported whether during guarantee period or not.
After have finished maintenance, our service engineer will do training for the operators in plenty of time so that operators can be ensured to independently make operation, debugging and daily plant maintenance.

General FAQ

Q: Who will need the Card Surface Inspection System?

A: It’s the necessary for the banking card making company, or VIP card, membership card making company. This system can apply for the high quality card production.

Q: How’s The Main Function For Such Machine?

A: It’s an auto Card Visual Inspection System for the standard card surface quality detection & OCR specifically.

The main inspection items are included: Matte/Glossy Overlay Printing, Holograms, Bar Codes, Signature Panels, Magnetic Strips, Relative Position, Main Picture Color, Print Errors, Scratches, Microtext, UV printing, Spots, Bubbles, Watermarks, Dent, Fiber…

Q: Do You Provide After-Sales Service?

A: Yes. Our factory has engineers for installation and after-sales service. And we also have engineer who can speak English. We will offer the training on site. The machine runs normal and match the clients’ requirements before going back.

Q: How Long Is The Installation Time?

A: It will take around 10 days for the installation, adjustment, training, running and we will stay there to make sure the machine works stable before we leave.

Q: Do You Provide Remote Service?

A: Yes. We can also apply teamviewer for remote service in any customer who needs it.

Q: If There Is An Issue On The Machine, How Long Do You Response?

A: We will response within 24 hours when we know your problems by mail or phone, including the shipment of spare parts. If need on site support, we will leave for your site within 48 hours.

Q: How Long Is The Guarantee Period?

A: One year guarantee. All the hardware parts would be free to provide within the guarantee period if not damage on purpose. Diagram would be provided also for you to change them. After the guarantee period, we still offer supports.

Q: Do You Offer On-Site Service After Installation?

A: Yes. If on-site service, the buyer will be in charge of the accommodations and 150USD/day as service fee. We can offer the training or maintenance for on-site service.

Q: How About The Easy Broken Spare Part?

A: One set would be shipped with the machine together. Spare parts list would be provided with the user manual together. And you can order them at any time.

Q: Can Your Machine Apply The Electrical Testing Function For Cards?

A: Yes. We can add the testing function for inlay or module in the cards with using the same reject box as the vision system.

Q: Can You Test Our Cards Before We Order It?

A: Yes. You can offer sample cards for us. We will test them and then give you a report about your cards. That is better way to make the machine as your requirements.

Q: How Long Is The Changeover Time?

A: In the first time of training, the technicians in your site will have around 20 layouts setting training so that you may clear mind about the principle. After that, it will take about 30 minutes for the new layout to do the changeover.

Q: Do You Offer FAT Testing?

A: Yes. We offer the FAT testing for our clients. We can do test as your requirements. And during the testing, if you want to do any change for the machine, we can modify the hardware and software in the factory.

Q: How About The Machine Working Time?

A: The machine can work for 7*24 hours. The machine can apply for one operator.

Q: Do You Accept The Customized?

A: Yes. Machine can be customized. We can apply the machine to reach the clients’ requirements. The software and hardware are developed by our factory. So it is easy to make the customized.

Q: Does The Machine Have Logs and Defect Records?

A: Yes. The logs would be provided when the machine is running. Like the OK/NG records of each camera for each card and the machine running situation. And also we can provide each cards record in it. The defective cards picture can be saved for the reference.

Commercial FAQ

Q: Do You Have Sales Or Service Partner In My Area?

A: Please kindly drop us a fast email inquiry@RSID-Solutions.com with your fully contacts, also describe your demands and the card’s details for our quick evaluation. Our team will contact you within 24 hours and let you know which person you may work with.

We are looking forward to having more sales partner in global Smart Card & RFID market. If you are interesting to work together, don’t hesitate to contact us sales@RSID-Solutions.com !

Q: How I Know & Get Price Or Your Sales & Service Partner Nearby Me?

A: After received your request for quotation, we will evaluate your needs and make the offer sending to you via email. If we have service partner in your country, will ask our partner contacting you shortly.

Hope you enjoy Not Only the machine but also the wonderful service!

Q: How Fast Can I Get The Machine After P.O. Confirmed?

A: Regular 45 days after PO confirmed. The lead time could be longer if client needs the special request for tailor-made or software functions. Let’s discuss case by case!

Q: What’s Your Warranty Term?

A: Normally 1 year after sale. We will provide the whole life maintenance and repair service.

Question & Advice

Thank you for supporting RSID Solutions. Pls kindly let us know, if you have any question & suggestion.

Q: Would you please leave your Company Name & Contact Info? （mandatory）

Q: Are you using our products? What’s the model?

Q: What do you think about the quality of our products?

Q: Are you satisfied with the function? What other functions do you need?

Q: Do you like our Service? What else can we do for you?

Q: Do you have any other question or advice? You’ll get our reply in 24 hours.

Q: Would you please leave your Company Name & Contact Info? （mandatory）

Q: Are you Card Manufacturer or Card Issuer?

Q: What type of card do you produce? What’s your main biz?

Q: What type of equipment are you looking for?

Q: Does your current production capacity not satisfy the PO or company plan? What is your expected production capacity?

Q: Do you wish to replace your old equipment? What are the machines model you are currently using？

Q: Do you wish to add a new production line? Which kind of it do you prefer? Contact card or contactless card? Prelam-inlay or banking card EMV migration?

Q: Are you looking for a new technology for tender? What’s your requirement?

Q: Are you looking for personalization machines？what type of chip are you using？What are your printing requirements, monochrome or CMYK? Do you have any other requirements such as hot stamping or embossing?

Q: Are you looking for quick shipment service?

Q: Are you looking for affordable machine?

Q: Please tell us your exact cards requirement, if our machine can’t meet your needs.

Q: Would you please leave your Company Name & Contact Info? （mandatory）

Q: Are you looking for a reliable machine for card manufacturer, issuer like Banking, Telecom Operator, or any other card business player?

Q: Are you looking for a reliable professional supplier who is concerned about your needs?

Q: Are you looking for a professional supplier who can provide 1 year warranty and thoughtful after-sale service?

Q: Are you looking for a win-win opportunity to make a difference?

Q: Do you wish to be our foreign agent? What’s your advantages？

Q: Do you have any other question or advice? You’ll get your reply in 24 hours.
